Hyper Welding 3 in 1 generator, lasapparaat, compressor

3 in 1 Benzine generator, lasapparaat, compressor:

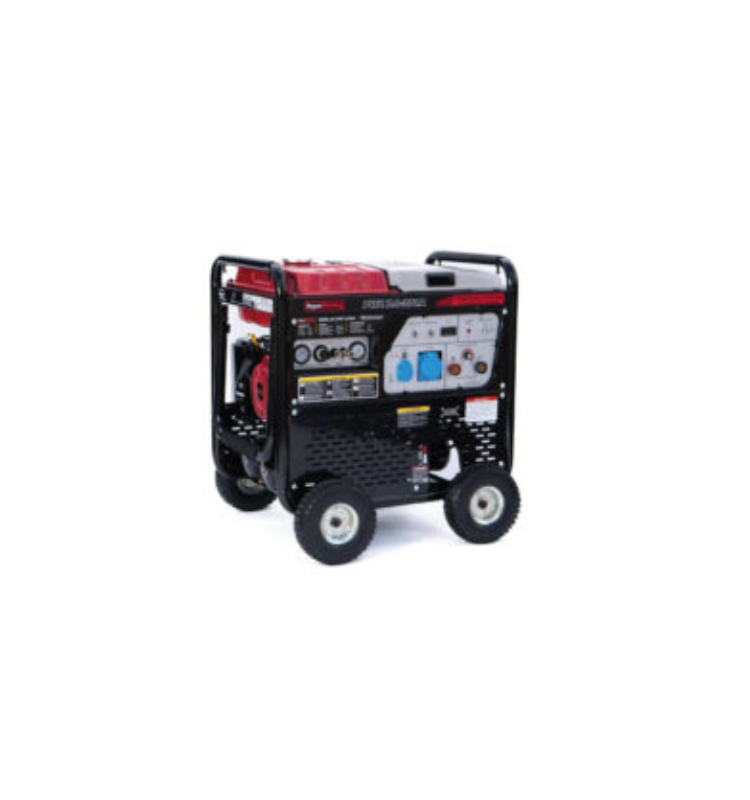

Hyper Welding PWC 7.0-200A is een 3 in 1 Welder, Generator and Air compressor op een krachtige compacte benzine motor. Hij is voorzien van 4 robuuste wielen zodat hij gemakkelijk te verplaatsen is. De generator heeft een maximaal vermogen van 5500 Watt, het lasapparaat heeft een vermogen van 50 - 200A en het vermogen van de compressor is 0,1 m3.

Technische specificaties van de 3 in 1 Benzine generator, lasapparaat, compressor:

• Generator, welding, air compressor. 3 functions on one machine. Wide range of applications.
• For DC welding and AC generator output and air compressor, can out put AC 5.0kw steadily.
• MDS rectifier structure, easy maintenance and high efficiency.
• AVR for control voltage.
• Easy start and low fuel comsumption.
• Compact structure for easy transportation.
• Two stages air compressor for high pnumatical tools.
• 20L large tank for air compressor higher eficiency.
• It can welding 4.0mm electrode for long time.

Specificaties van de 3 in 1 Benzine generator, lasapparaat, compressor:

• Rated voltage AC 230V
• Rated power 5000W
• Max power 5500W
• Rated current 21.7A
• Frequency 50Hz
• Power Factor 1.0

Specifications Welder:

• Non-load Voltage 75
• Welding voltage 22-28V
• Current range 50-200A
• Rated duty cycle 50%

Specifications Air Compressor:

• Air Compressor Capacity 0.1m³
• Alternator Wattage 1.35kW
• Pressure 115PSI
• Pressure-relief Action Range 0.6~0.8Mpa

Specifications Engine:

• Cooling system Air cool
• Air valve OHV
• Lgnition system CDI
• Fuel tank capacity 30
• Oil alert system YES
• Fuel consumption 374 (g/hp.hr)
• Start mode Electric/Recoil

Specifications Complete Machine:

• Length × Width × Height 850.5 × 583 × 780 mm
• Net weight 153 kg
• IP Grade IP 21S
• Insulation grade F
